Aukuyee 2.4" TFT Handheld Oscilloscope, Mini Digital Portable Multimeter Audio Scope Tester Kit with BNC Clip Probe, Power Supply

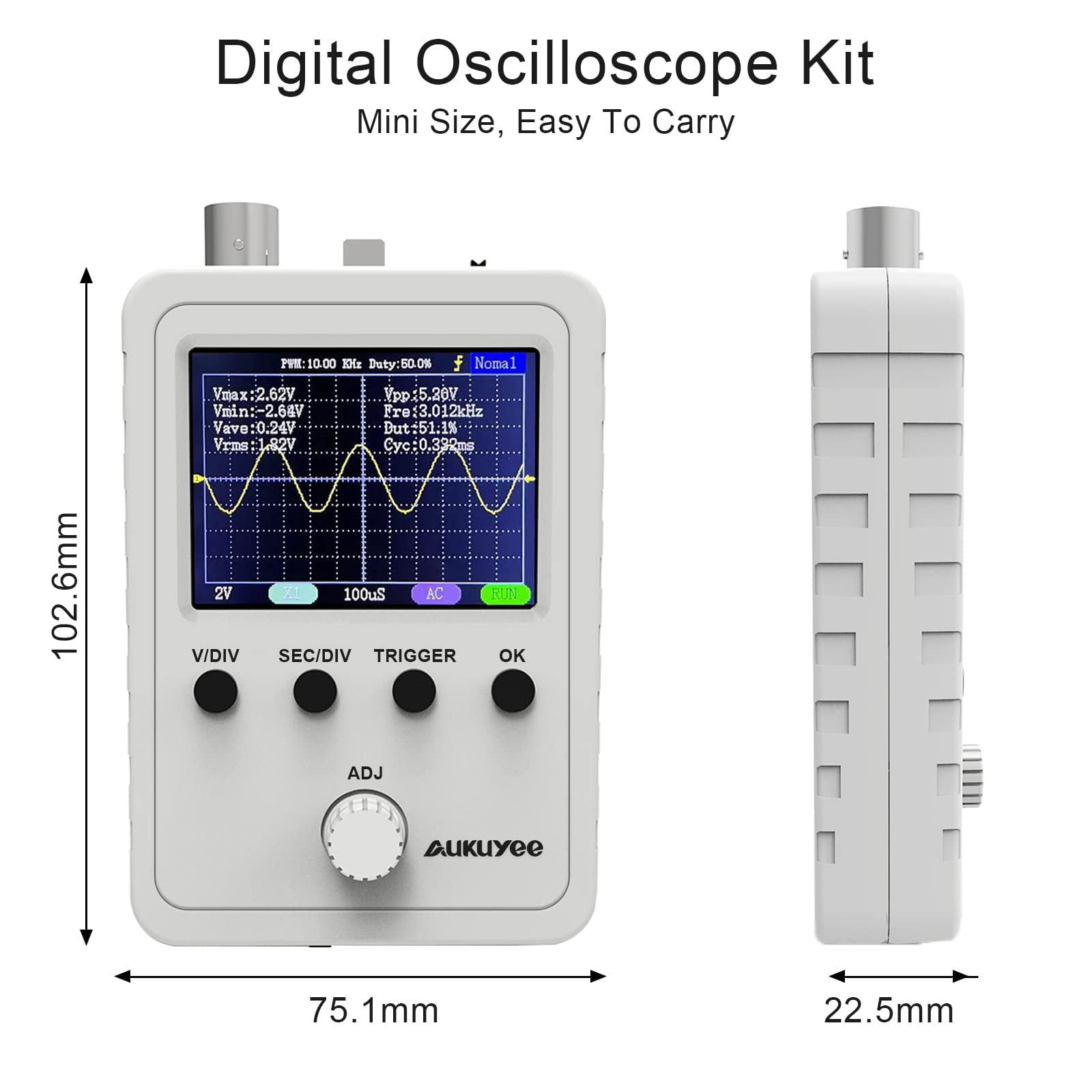

This handheld digital oscilloscope features a 2.4” color TFT display and a portable mini design for easy signal testing. With wide sensitivity support and simple controls, it’s ideal for students, hobbyists, and basic electronics work. Specification Max realtime sample rate: 1 MSa/s Sensitivity range: 5mV/div - 20V/div Input Impedance: 1M ohm/20pF Maximum Input voltage: 50Vpk Record length:1024 bits Timebase range: 500s/Div-10us/Div Display: 2.4 inch color TFT LCD with 320 x 240 resolution Power Adapter: 9V DC ( 8-10V ) Dimension: 115mm X 75mm X 22mm Weight: 100 grams (without cable and power adapter)  Package Contents / What’s Included Handheld digital oscilloscope for signal and waveform testing. BNC to clip cable for quick and stable signal connection. User manual with basic setup and operating instructions. 9V power adapter for reliable and continuous power supply.

• ‌Handheld digital oscilloscope with a 2.4” TFT color display makes waveforms clear and easy to read
• Portable mini oscilloscope design is lightweight and easy to carry for labs, classrooms, and field use
• Wide sensitivity range from 5mV/div to 20V/div works for both small signals and higher voltage testing
• Real-time sampling rate up to 1 MSa/s provides smooth and reliable waveform display

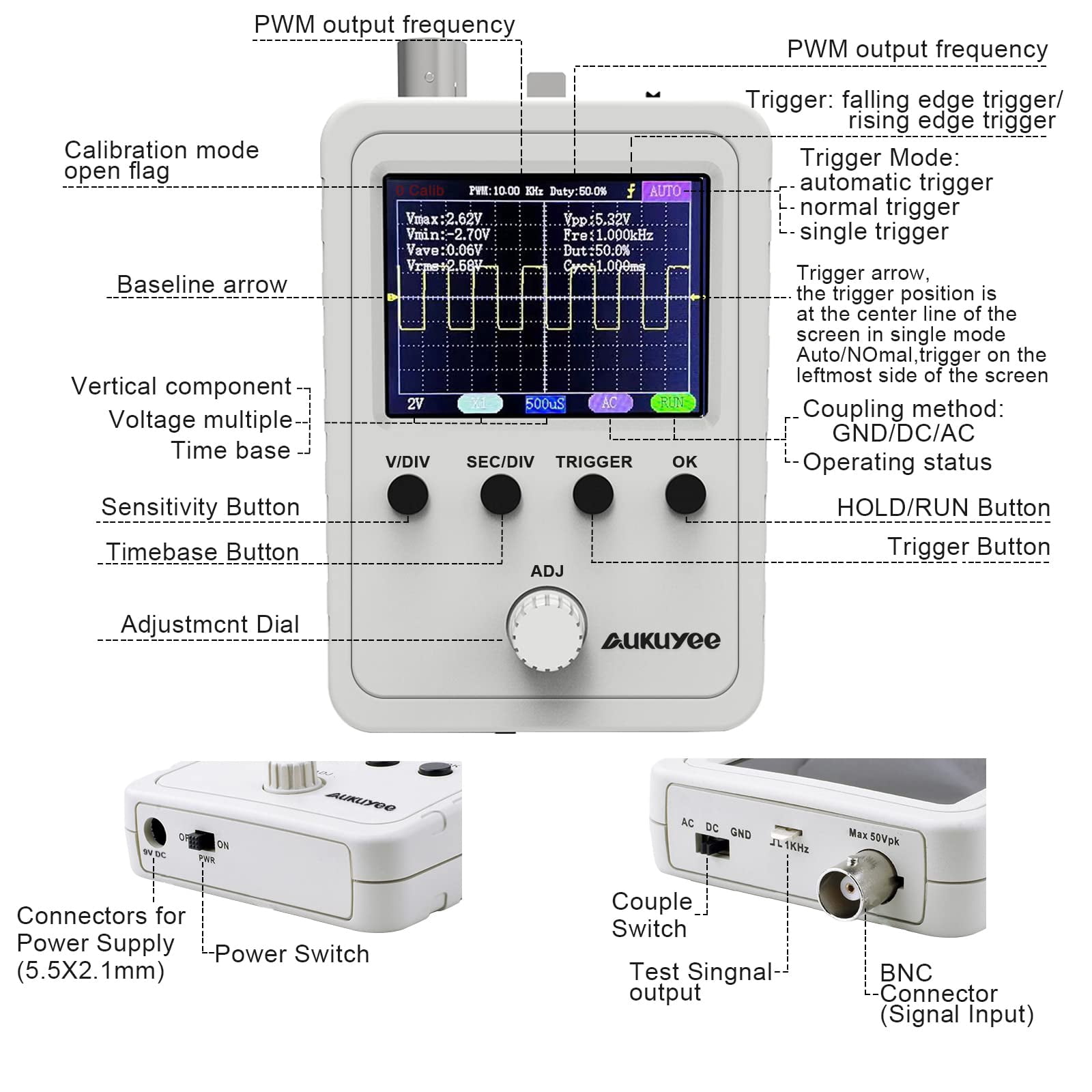

• Rotary encoder and simple button controls allow quick setup without complicated menus

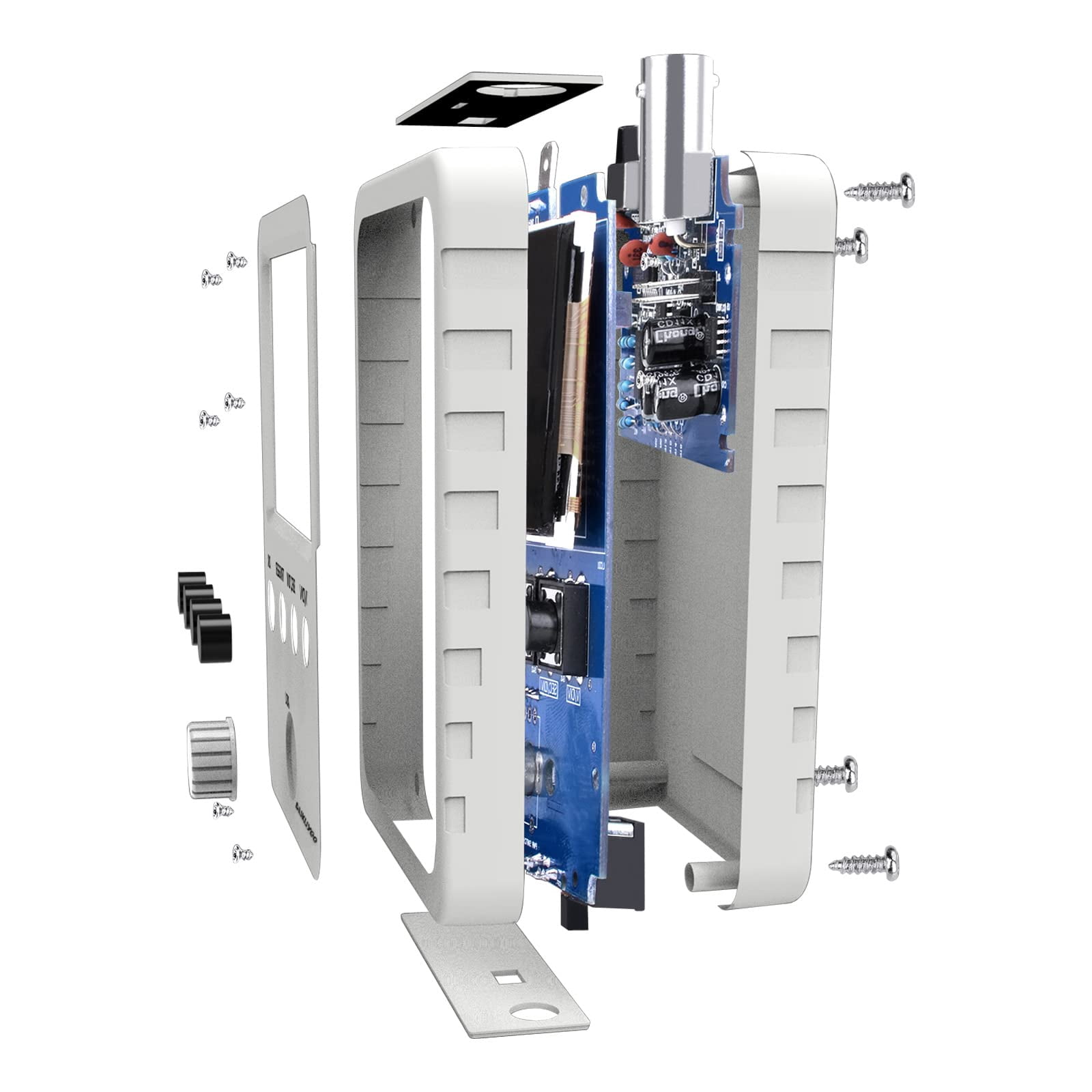

• Stable circuit design with separated analog and digital boards helps reduce signal noise during testing
• Supports input signals up to 50V peak, suitable for basic electronics and audio signal work
• Fully assembled and ready to use, no DIY assembly or soldering required

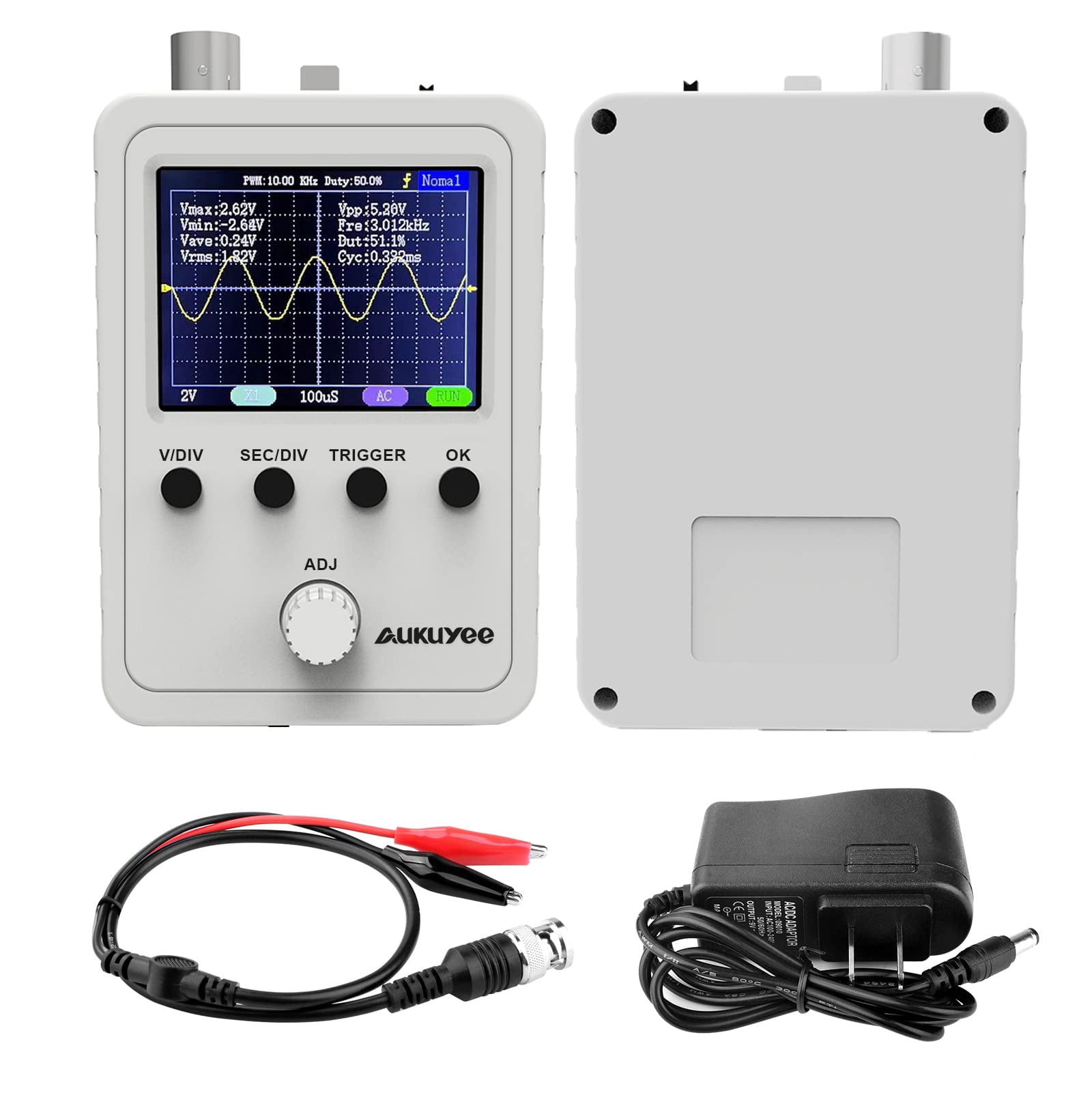

• Everything you need is included, with a BNC clip cable, power adapter, and user manual
